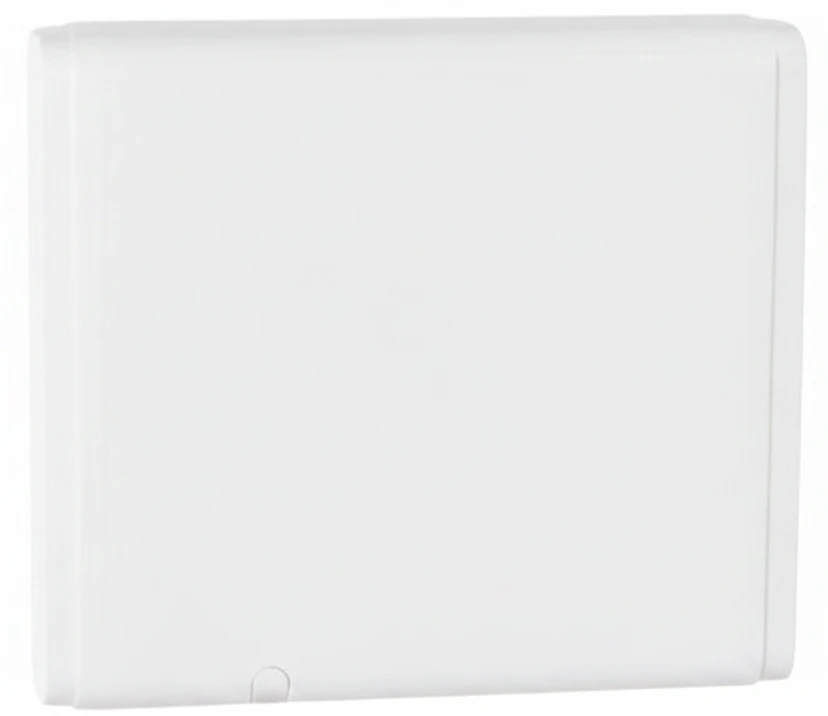

CP-100
100 Zone Alarm Panel
Panel Dimensions: (H)338 mm x (W)287 mm x (D)88 mm
Like the W-CP-40, CP-50 & CP-200 range of Orisec panels, this panel is capable of using Orisec's Control plus App, with a variety of CM2 coms modules.
Panel is capable of voice annunciation. 100 Zones Max, 10 zones on the panel and expandable to 100 hardwired or wireless devices through expanders.
Standard Poly Enclosure for this Panel. Maximum Battery Size 7Ah.
Orisec like most manufactures continulously develop their products, specifications may change and you should always consult the manufacturer for the latest specifications of equipment.
Features
10 Hardwired Zones On Board
Hybrid Option with Wireless Expander
Maximum 100 Zones combined hard wired or wireless when wireless expnder added
Wide Range of Compatible Keypads
Max 10 Keypads
No Built in Keypad
Voice Annunciation Capable
Communication options (CP20 & above have Various Communicator options)
Orisec Control Plus App (CP20 & above have App Capability)
Max Battery Size 17Ah
PSU Power Supply 2.75A
20 Panel Outputs
12100 Events log
Please refer to Orisec Control Panel Manuals for the full specification of the Orisec 100 Zone Hybrid Alarm Panel
Only
It is recomended that only competant people install and maintain Security systems.
Note: Other third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
