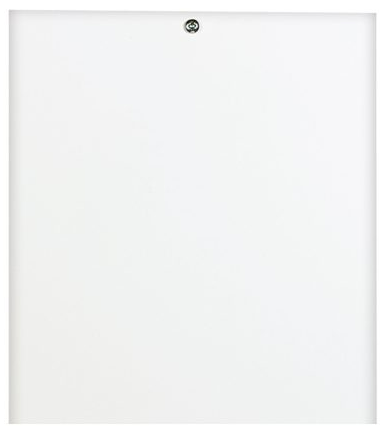

CP-200SM
200 Zone Alarm Panel Small Metal Case
Panel Dimensions: (H)395 mm x (W)391 mm x (D)94 mm
Like the CP-100, the CP-200 can have 100 wireless on Network 1, Network 2 does not currently support Wireless. Maximum number of Zones is 200 hardwired and 100 wireless.
Large Metal Enlosure. Maxium Battery Size 17Ah
Orisec like most manufactures continulously develop their products, specifications may change and you should always consult the manufacturer for the latest specifications of equipment.
Features
10 Hardwired Zones On Board
Hybrid Option with Wireless Expander
Maximum 200 Zones combined hard wired or wireless when wireless expander added
Wide Range of Compatible Keypads
Max 10 Keypads
No Built in Keypad
Voice Annunciation Capable
Comunication options (CP20 & above have Various Communicator options)
Orisec Control Plus App (CP20 & above have App Capability)
Max Battery Size 17Ah
PSU Power Supply 2.75A
20 Panel Outputs
12200 Events log
Please refer to Orisec Control Panel Manuals for the full specification of the Orisec 200 Zone Hybrid Alarm Panel
Only
It is recomended that only competant people install and maintain Security systems.
Note: Other third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
