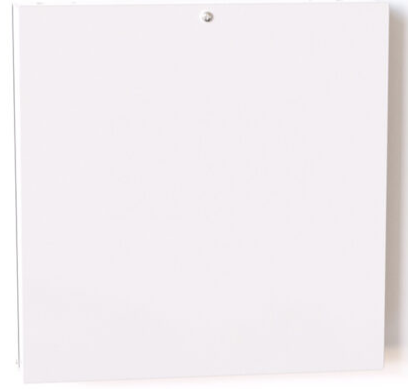

CP-20M
20 Zone Panel Large Metal Case
Panel Dimensions: (H)395 mm x (W)391 mm x (D)94 mm
App Entry Level Orisec Panel with 10 on board Zones expandable to 20.
Compatible with Orisec Control Plus 2 App or ARC monitoring with a selection of CM2 commuication boards available.
Can add a Wireless Access point to panel, which is ideal for small premises only or a wireless Expander, Maximum number of zones is 20 and can be a combination of hard wired or wireless.
Large Metal Enlosure. Maxium Battery Size 17Ah
Orisec like most manufactures continulously develop their products, specifications may change and you should always consult the manufacturer for the latest specifications of equipment.
Features
10 Hardwired Zones On Board
Hybrid Option with Plug-on Wireless Expander
Maximum 20 Zones combined hard wired or wireless when wireless expander added
Wide Range of Compatible Keypads
Max 5 Keypads
No Built in Keypad
No Voice Annunciation
Comunication options (CP20 & above have Various Communicator options)
Orisec Control Plus App (CP20 & above have App Capability)
Max Battery Size 17Ah
PSU Power Supply 2.75A
5 Panel Outputs
1250 Events log
Please refer to Orisec Control Panel Manuals for the full specification of the Orisec 20 Zone Hybrid Alarm Panel
Only
It is recomended that only competant people install and maintain Security systems.
Note: Other third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
