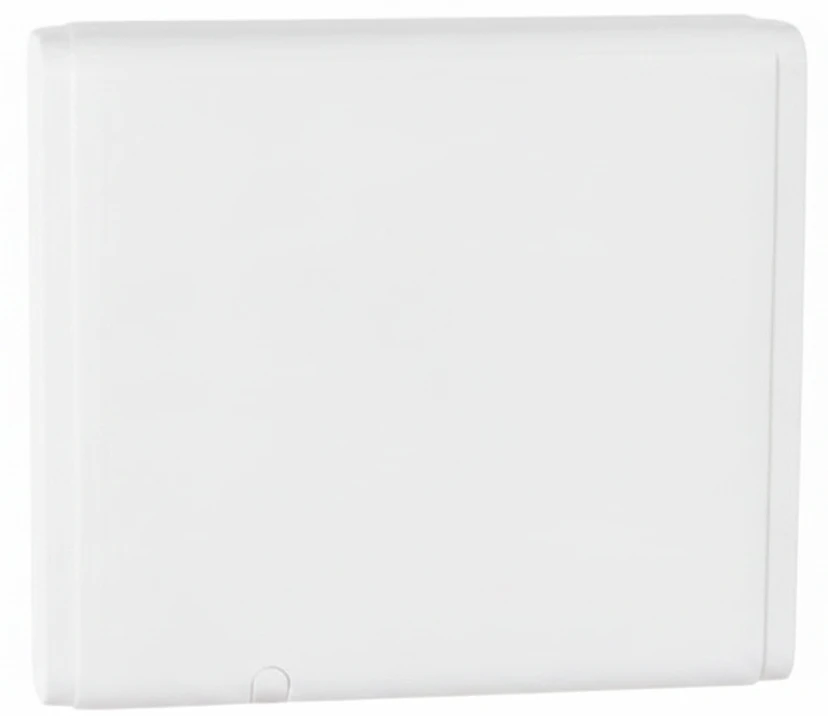

CP-50
50 Zone Alarm Panel
Panel Dimensions: (H)338 mm x (W)287 mm x (D)88 mm
10 Zones on bord expandable to a maximum of 50 hard wired or wireless zones.
Can do voice annunciation.Compatible with Orisecs control Plus 2, various communicator options available.
Standard Poly Enclosure for this Panel. Maximum Battery Size 7Ah.
Orisec like most manufactures continulously develop their products, specifications may change and you should always consult the manufacturer for the latest specifications of equipment.
Features
10 Hardwired Zones On Board
Hybrid Option with Wireless Expander
Maximum 50 Zones combined hard wired or wireless when wireless expnder added
Wide Range of Compatible Keypads
Max 10 Keypads
No Built in Keypad
Voice Annunciation Capable
Communication options (CP20 & above have Various Communicator options)
Orisec Control Plus App (CP20 & above have App Capability)
Max Battery Size 17Ah
PSU Power Supply 2.75A
20 Panel Outputs
1250 Events log
Please refer to Orisec Control Panel Manuals for the full specification of the Orisec 50 Zone Hybrid Alarm Panel
Only
It is recomended that only competant people install and maintain Security systems.
Note: Other third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
