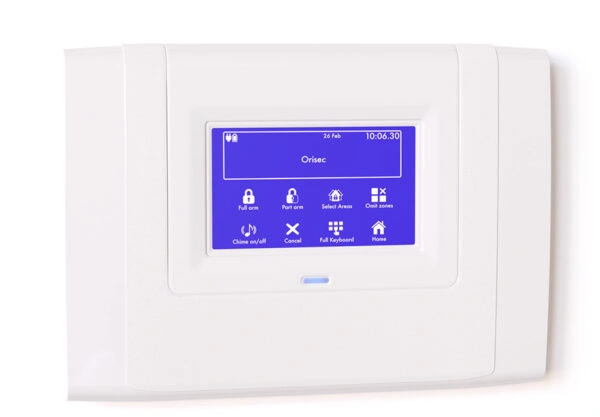

W-CP-40T
40 Zone Wireless Panel Built in Touch Screen Keypad
Panel Dimensions: (H)168 mm x (W)234 mm x (D)40 mm
10 Zones Hardwired or upto 40 wireless on board. Hardwired Zones expandable to 40 with expanders.
Compatible with Orisec Control Plus 2 App or ARC monitoring with a selection of CM2 commuication boards available. Maximum number of zones is 40 and can be a combination of hard wired or wireless.
Standard Poly Enclosure for this Panel. Maximum Battery Size 2.4Ah NiMH.
Orisec like most manufactures continulously develop their products, specifications may change and you should always consult the manufacturer for the latest specifications of equipment.
Features
10 Hardwired Zones On Board
40 Wireless Zones On Board
Max 40 Zones
Wide Range of Compatible Keypads
Max 4 Keypads
Built in lcd Keyed keypad
Voice Annunciation
Various Communicator options
Orisec Control Plus App (Requires CM2 Communication module)
Battery Size 2.4Ah NiMH
PSU Power Supply 1.5A
3 Panel Outputs
1250 Events log
Please refer to Orisec Control Panel Manuals for the full specification of the Orisec 40 Zone Hybrid Alarm Panel
Only
It is recomended that only competant people install and maintain Security systems.
Note: Other Orisec & third party equipment is compatible with this system.
You should consult the manufacture of a specific product regarding its compatability and its limitations if any with this.
